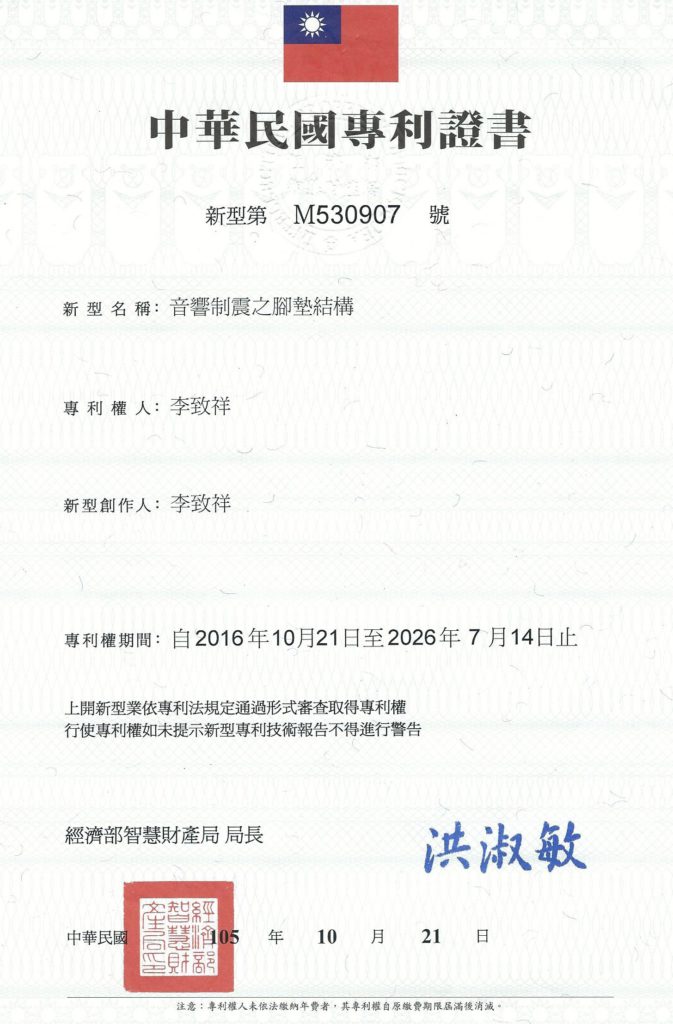

SN-01G patented double-layer absorber
SN-01G
patented double-layer absorber
.Use the upper and lower cushion vibration structure to resist and decrease force with each other to reach the effect of the double-layer system vibration.
.Eliminate the most minor tremble and resonance when the acoustic is operating. .The design of reducing the rendering of sound creates the most perfect sound effect.
.The interface of absorber is made out of anti-temperature silicone to prevent hardening, cracking or peeling off after long-time using.
.Better insulating quality also prevent electrostatic disturbance which will save your fortune.

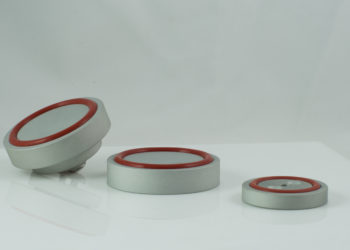

.Aluminum bumper(strong and durable)+ silicone ring (soft contact surface)=hard and soft ach
.Bumper can resist the of weight of + / – 25 kgs ,and you need not worry about the bumper scratching your beloved furniture when you moved around the acoustics.
Dimension：upper 34mm*6mm；lower 48mm*10mm
Weight：single double layer 61g
Bearing weight：single +/- 25KG

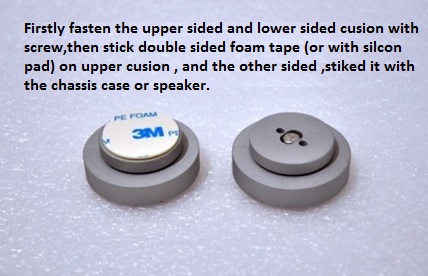

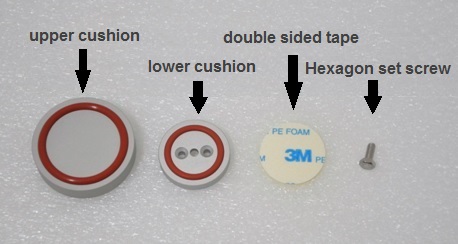

1. Stick on and set
2.Set the nut
the spacing between 2 hole(center point to the center point)12mm
Suggest to use flat head screwswith the specification of M3*12~M3*16 (Depend on the thickness of chassis bottom)&M3 nut.
Screws should be placed, according to the corresponding position. The upper mat and chassis bottom are fixed with nuts,and lock the upper and lower mats. The assembly is completed.
Theexquisite players can also directly select tapping on the hole and don’t need to fix with a nut.
Recommend the size of the hole in chassis bottom/ Recommend the size of the tapping for D4(circle diameter 4mm) *2 holes
the spacing between 2 hole(center point to the center point)12mm
Screws should be placed, according to the corresponding position.
Stick the upper mat and chassis bottom.,and lock the upper and lower mats. The assembly is completed.
3.Stick the screw into the hole
the spacing between 2 hole(center point to the center point)12mm
Use the specification of M4*10~M4*14(Depend on the thickness of chassis bottom)
Use the screw to lock the upper mat from the inside of the machine, and then lock the lower mat, then it’s complete.
